Key features

     • Validate Cable Performance up to 10GBASE-T via frequency-based measurements

     • Get connected switch data rate, switch name, port number, and VLAN

     • Detect the PoE class (1-8) and power, and perform a load test

     • Perform cable diagnostics including length

     • Manage results and print reports from LinkWare™ PC


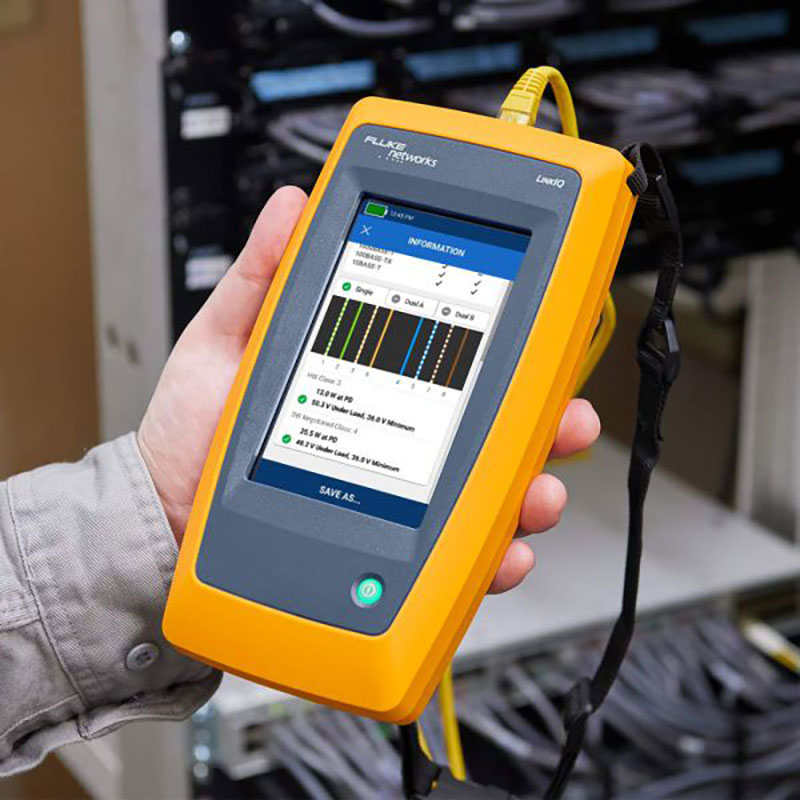

Fluke Networks LinkIQ™ Cable+Network Tester

The LinkIQ™ Cable+Network Tester is the trusted solution to verify cable performance up to 10G and solve network connectivity problems.

LinkIQ™ validates cable performance using frequency-based measurements to calculate maximum bandwidth (10BASE-T to 10GBASE-T), which ensure that tested links meet performance requirements.

LinkIQ™ also provides nearest switch diagnostics including advertised data rate, switch name and port number and VLAN information, plus PoE testing and load test up to Class 8 (90 W).

Additional features include: Cable Toning, Port Blink, 802.1x authentication, Remote Office Locators, and the ability to manage results via LinkWare PC.

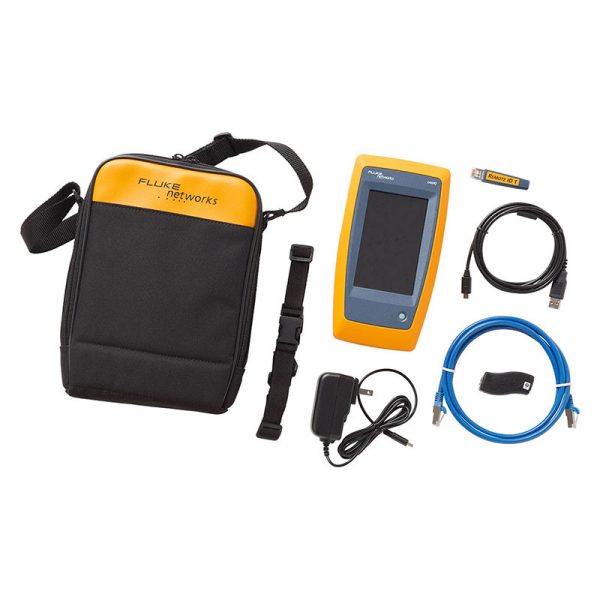

Includes LinkIQ™ Main Unit, Remote ID #1, RJ45-RJ45 patch cord, AC charger, RJ45/11 universal coupler, and carrying case.

LinkIQ™ Cable+Network tester includes: LinkIQ™ with remote ID #1, RJ45-RJ45 patch cord, AC charger, RJ45/11 universal coupler, and carrying case


     • PoE Identification

     • PoE Power Class (0-8)

     • Switch Speed

     • Switch Name, Port, VLAN

     • Digital Toning

     • Analog Toning

     • VDV Service Detection

     • Cable Wiremap

     • Cable Length

     • Qualify Cabling Performance

     • Up to 10 Gb/s

     • Identify open/short

     • Distance to open/short


Feature Description
Languages supported in UI English (SW v1.0)
Weight 1 lbs 6 oz (624g)
Battery Type: Lithium-ion, 3.6 V, 6400 mAh
Life: 8 hours typical
Charge time: 4.5 hours
Charging temperature range: 0 °C to +40 °C
Power Adapter Input: 100 to 240 VAC ±10%, 50/60Hz
Output: 15 VDC, 2 A maximum
Class II
Host Interface USB type C
Display 800 x 480 color capacitive multi-touch
Dimensions 8.5 in x 4.5 in
Operating Temperature 0°C to 45°C
Storage Temperature -10°C to +60°C
Operating Relative Humidity 0 % to 90 %, 0°C to 35°C
0 % to 70 %, 35°C to 45°C
Operating Altitude 4,000 m
3,200 m with ac adapter
Vibration Random, 2 g, 5 Hz-500 Hz
Drop 1 m drop, 6 sides

Active Network Diagnostics

Feature Description
Diagnostic Protocols Link Layer Discovery Protocol (LLDP)
Cisco Discovery Protocol (CDP)
Fast Link Pulses (FLP)
Nearest Device Diagnostics
(If available through diagnostic protocols)
Switch Name
Port Number
Advertised Data Rates
Advertised Duplex
Power Over Ethernet Compatibility IEEE 802.3af/at/bt
Hardware negotiation with signature resistance
Software negotiation with LLDP/CDP
Power Over Ethernet Diagnostics Advertised Power Class (0 to 8)
Advertised Available Power
Powered Pairs
Diagnostics for both Single and Dual signatures
Power Over Ethernet Measurements Loaded Voltage (V)
Loaded Power (W)
Port Blink Blink the light of the connected port

Cable Test Specifications

Feature Description
Test Port Shielded 8-pin modular jack accepts 8-pin modular (RJ45) plugs.
Commissioning Autotests 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, 100BASE-TX, 10BASE-T, Wire map Only.
Test Speed: 6 seconds for lengths < 70 m
Cable Types Balanced twisted-pair cabling
Unshielded twisted-pair
Screened twisted-pair
2-pair and/or 4-pair
Wire Map-Only Tests Document wire map
Length of each pair
Diagnose split pairs
User selectable T568A or T568B
User selectable crossover settings (Straight through, Half-crossover, Full-crossover)
Test speed: 1 second for lengths < 120 m
Length (Maximum) 305 m (1000 ft)
Nominal Velocity of Propagation (NVP) User settable
Tone Generator Generates digital tones compatible with Fluke Networks IntelliTone probe.
Generates analogy tones compatible with general analog probes.
Remote ID Locators Use remote ID terminations to identify up to 7 unique ports or office outlets
