Fluke Copper Kits MicroScanner MS2-TTK

Copper KitFluke Networks

Key features

    • Graphical wire map, length, cable ID, & distance to fault

    • MicroScanner² cable tester, punch down tool, tone generator & probe

    • Tests all common media types including RJ11, RJ45, & Coax

    • Locates virtually any cable w/ IntelliTone™ digital & analog toning

    • Verifies media services: 10/100/1000 Ethernet, POTS, & PoE

- +


Fluke Networks 577 MS2-TTK MicroScanner² Network Cable Tester Kit

MS2-TTK MicroScanner² copper cable verifier kit helps find common errors by displaying graphical wiremap, pair lengths, distance to fault, and far end device. Integrated RJ11, RJ45, and coax test ports support many types of low-voltage cable testing with no need for adapters.

MicroScanner² Professional Kit:

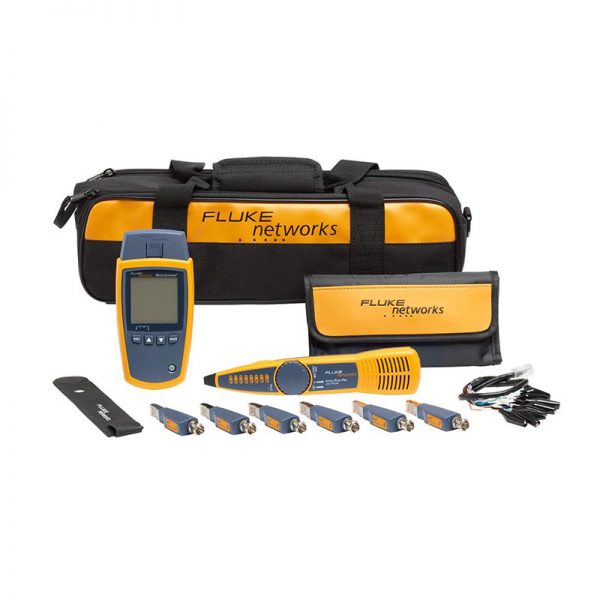

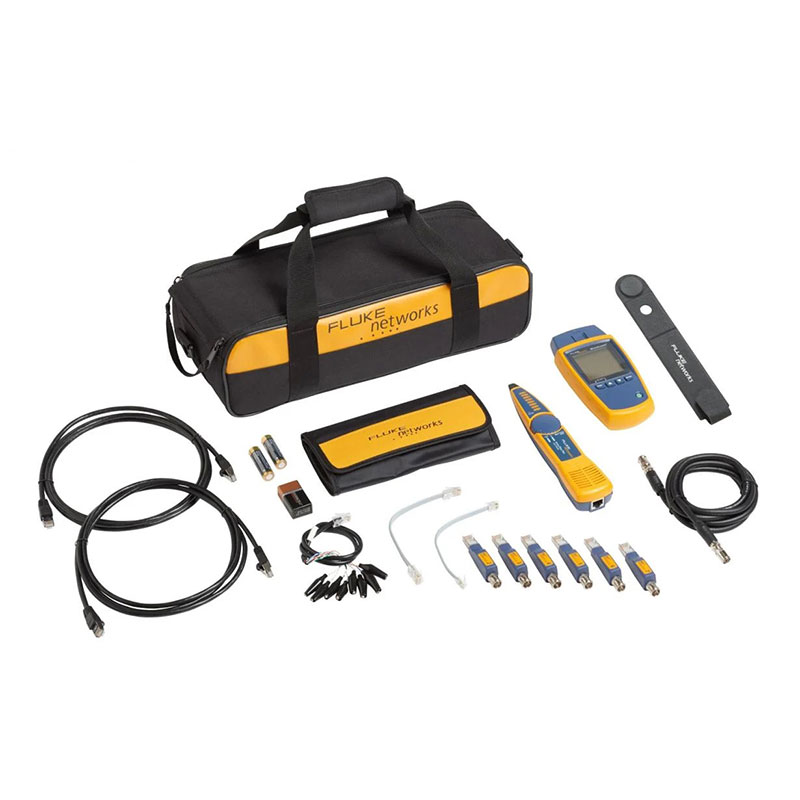

A complete kit including the MicroScanner² Cable Verifier plus additional remote IDs(2-7), IntelliTone Probe, sturdy case and multiple test leads.


    • Switch Speed

    • Digital Toning

    • Analog Toning

    • VDV Service Detection

    • Cable Wiremap

    • Cable Length

    • Identify open/short

    • Distance to open/short


MicroScanner2 and MicroScanner PoE Specifications

Specifications apply at 23 °C (73 °F), unless otherwise noted.

Environmental Specifications
Operating temperature 32 °F to 113 °F (0 °C to 45 °C)
Storage temperature -4 °F to +140 °F (-20 °C to +60 °C)
Operating relative humidity (% RH without condensation) 90 % (50 °F to 95 °F 10 °C to 35 °C)
75 % (95 °F to 113 °F 35 °C to 45 °C)
Shock and Vibration Random, 2 g, 5 Hz-500 Hz (Class 2)
1 m drop test with and without wiremap adapter attached
Safety IEC 61010-1 3rd Edition
Altitude 4,000 m; Storage: 12,000 m
EMC IEC 61326-1
General Specifications
Test connectors Shielded 8-pin modular jack accepts 8-pin modular (RJ45) and 4-pin modular (RJ11) plugs. MicroScanner2: F-connector for coaxial cable.
Power Battery type: 2 AA (NEDA 15A, IEC LR6) alkaline batteries
Battery life: 20 hours of typical use
Other compatible battery types: 2 AA photo lithium, NIMH, NICAD
Dimensions and weight (with batteries installed and wiremap adapter attached) 3 in x 6.4in x 1.4 in (7.6 cm x 16.3 cm x 3.6 cm) MicroScanner2: 10.6 oz (300 g) MicroScanner PoE: 10.6 oz (300 g)
Display Monochrome LCD with backlight
Test Modes
Cable test Measures length, verifies wiremap, identifies remote ID locators, and detects Ethernet ports. MicroScanner PoE also shows HIGH Ω when the resistance of the cable is more than 12.5 Ω. Displays results on one screen.
Tone Generates Intellitone™ and normal analog toning signals
PoE MicroScanner2: Solicits and detects the presence of 802.3af compatible PoE (Power over Ethernet) devices MicroScanner PoE: Solicits and detects the presence of 802.3af, at, bt, and UPOE (Cisco’s Universal Power over Ethernet) compatible PoE devices
Performance Specifications
Cable types tested Twisted pair: UTP, FTP, SSTP
Coaxial (MicroScanner2): 75 Ω, 50 Ω, 93 Ω
Length test Range: 460 m (1500 ft)
Resolution: 0.3 m (1 ft)
Typical accuracy: ± 4% or 0.6 m (2 ft) whichever is greater. NVP uncertainty is an additional error.
Calibration: User-settable NVP for twisted pair and coax (MicroScanner2). Can determine actual NVP with known length of cable.
Wiremap test Detects single-wire faults, shorts, miswires, split pairs, and up to seven far-end adapter IDs. The wiremap is drawn with proportional length to visually indicate the approximate location of faults.
Ethernet port detection MicroScanner2: Detects the advertised speed of 802.3 Ethernet ports with speeds of 10 Mbps, 100 Mbps, and 1 Gbps. MicroScanner PoE: Detects the advertised speed of 802.3 Ethernet ports with speeds of 10 Mbps, 100 Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps, and 10 Gbps.
Tone generator Supports toning and cable mapping with a Fluke Networks digital IntelliTone™ probe. Generates four tones compatible with typical analog probes. SmartTone™ feature gives positive identification of cables in bundles when using an IntelliTone or an analog probe.
