Fluke Copper Kits MicroScanner PoE MS-POE-KIT
Copper KitFluke NetworksKey features
• Determine if a switch port can provide enough power by reporting PoE class (0-8)
• Displays network switch speeds capabilities up to 10G
• Displays PoE injector voltage level
• Displays cable length, wiremap, cable ID and distance to fault
• Locate and trace cable or wire pair with digital and analog toning with included Intellitone Pro 200 Probe
• Included Remote IDs help quickly determine network layout
• Validate and troubleshoot your Industrial Ethernet copper cabling, reducing downtime in time-sensitive industrial networks
• Quickly pinpoint cable defects in facilities where network cables are exposed to vibration, flexing, moisture, temperature changes and EMI from motor drives and other devices
Description
Fluke Networks MicroScanner™ PoE Cable Verifier Kit
MicroScanner™ PoE finds common errors and switch power capacity. Cables often fail in harsh industrial environments where cables are exposed to vibration, extreme flexing, moisture, expansion and contraction from temperature change. Failures result in costly production downtime so it’s important to quickly identify where the cable is broken so it can be replaced or repaired. MicroScanner™ PoE performs continuity tests on all wires in a few seconds and displays results graphically so you can see opens, shorts, and cross wires. It also reports which end of the cable has a problem and reports the distance to an open connection within the cable.
The MicroScanner™ PoE also allows for easy installation/maintenance on IT, Security, PoE lighting, Ethernet based HVAC devices and IP based Building Automation systems. Troubleshoot quickly and easily with the oversized backlit LCD screen that displays clear results in bright light or complete dark with intuitive icons, and support of Class 1 to 8 PoE.

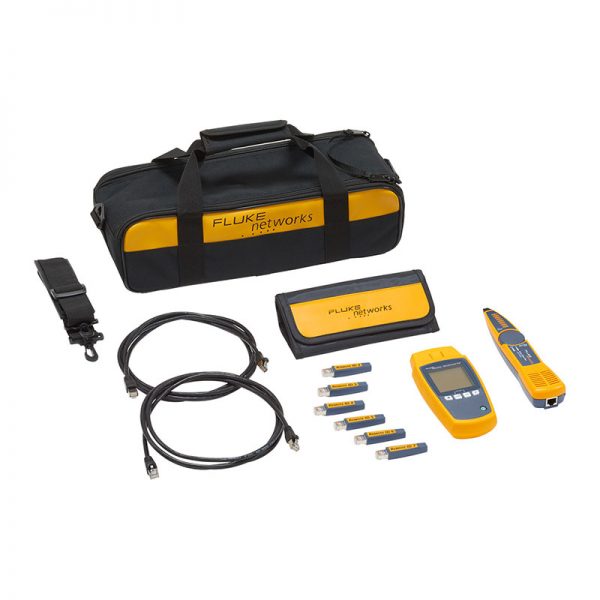

MicroScanner PoE Professional Kit: Includes MicroScanner PoE, MS-PoE Remote ID Kit (2-7), Intellitone Probe, Duffle bag, and RJ45 patch cords
Functions:
• PoE Identification
• PoE Power Class (0-8)
• Switch Speed
• Digital Toning
• Analog Toning
• VDV Service Detection
• Cable Wiremap
• Cable Length
• Identify open/short
• Distance to open/short
Specifications:
Specifications apply at 23 °C (73 °F), unless otherwise noted.
| Environmental specifications | |
| Operating temperature | 32 °F to 113 °F (0 °C to 45 °C) |
| Storage temperature | -4 °F to +140 °F (-20 °C to +60 °C) |
| Operating relative humidity (% RH without condensation) | 90 % (50 °F to 95 °F 10 °C to 35 °C) 75 % (95 °F to 113 °F 35 °C to 45 °C) |
| Shock and Vibration | Random, 2 g, 5 Hz-500 Hz (Class 2) 1 m drop test with and without wiremap adapter attached |
| Safety | IEC 61010-1 3rd Edition |
| Altitude | 4,000 m; Storage: 12,000 m |
| EMC | IEC 61326-1 |
| General specifications | |
| Test connectors | Shielded 8-pin modular jack accepts 8-pin modular (RJ45) and 4-pin modular (RJ11) plugs. |
| Power | Battery type: 2 AA (NEDA 15A, IEC LR6) alkaline batteries Battery life: 20 hours of typical use Other compatible battery types: 2 AA photo lithium, NIMH, NICAD |
| Dimensions and weight (with batteries installed and wiremap adapter attached) | 3 in x 6.4in x 1.4 in (7.6 cm x 16.3 cm x 3.6 cm) MicroScanner™ PoE: 10.6 oz (300 g) |
| Display | Monochrome LCD with backlight |
| Test modes | |
| Cable test | Measures length, verifies wiremap, identifies remote ID locators, and detects Ethernet ports. MicroScanner™ PoE also shows HIGH Ω when the resistance of the cable is more than 12.5 Ω. Displays results on one screen. |
| Tone | Generates Intellitone™ and normal analog toning signals |
| PoE | MicroScanner™ PoE: Solicits and detects the presence of 802.3af, at, bt, and UPOE (Cisco’s Universal Power over Ethernet) compatible PoE devices |
| Performance specifications | |
| Cable types tested | Twisted pair: UTP, FTP, SSTP |
| Length test | Range: 460 m (1500 ft) Resolution: 0.3 m (1 ft) Typical accuracy: ± 4% or 0.6 m (2 ft) whichever is greater. NVP uncertainty is an additional error. Calibration: User-settable NVP for twisted pair and coax (MicroScanner™2). Can determine actual NVP with known length of cable. |
| Wiremap test | Detects single-wire faults, shorts, miswires, split pairs, and up to seven far-end adapter IDs. The wiremap is drawn with proportional length to visually indicate the approximate location of faults. |
| Ethernet port detection | MicroScanner™ PoE: Detects the advertised speed of 802.3 Ethernet ports with speeds of 10 Mbps, 100 Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps, and 10 Gbps. |
| Tone generator | Supports toning and cable mapping with a Fluke Networks digital IntelliTone™ probe. Generates four tones compatible with typical analog probes. SmartTone™ feature gives positive identification of cables in bundles when using an IntelliTone or an analog probe. |
