Fluke Copper Kits MT-8200-60-KIT

Fluke NetworksTester
  • Locates cables safely and effectively on active networks
  • Kit includes IntelliTone™ toner, probe, adapters, patch cables, and test leads
  • Verifies twisted pair installation with end to end continuity test
  • IntelliTone™ digital toning eliminates noise and false signals
  • SmartTone analog toning isolates individual wire pairs
- +


Fluke Networks MT-8200-60-KIT IntelliTone™ Pro 200 Toner and Probe Kit

The first network cable toner and probe to offer digital and analog signaling all in one network toner and probe. Use digital mode to trace and locate data cabling safely and effectively on active networks. Use analog mode to isolate individual wire pairs and trace voice, audio and video cabling.

General specifications
Operating temperature 32 °F to 104 °F (0 °C to 40 °C)
Storage temperature -4 °F to +140°F (-20 °C to °C)
Operating relative humidity (% RH without condensation) 95 % (50 °F to 95 °F; 10 °C to 35 °C)
75 % (95 °F to 104 °F; 35 °C to 40 °C) Uncontrolled < 50 °F (< 10 °C)
Vibration Random, 2 g, 5 Hz-500 Hz
Shock 1 m drop test
Safety EN 61010-1, Category: None
Altitude 3000 m
EMC EN 61326-1, FCC Part 15 B
Battery type and life 9 V alkaline (NEDA 1604A or IEC 6LR61); 20 hours typical
Applications Copper cabling media including; 75 or 50 Ohm Coaxial cable; Two Conductor control, security, generic cabling. 10 Base-T or 10/100 Base-T datacom networks. UTP cable. Shielded Twisted Pair supported in Cable Map function of the IntelliTone 200.
Toner specifications
Dimensions 5.54 in x 2.94 in x 1.25 in (14.1 cm x 7.5 cm x 3.2 cm)
Display LED
Control Thumbwheel switch

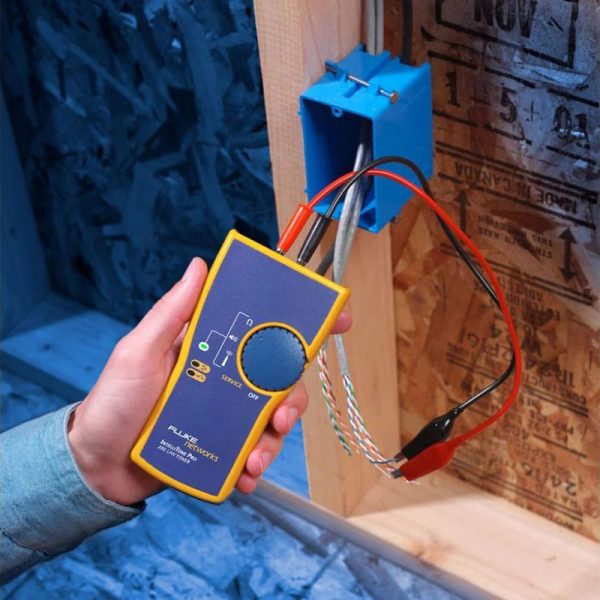

Toner interface Main Mod8 port for tone generation on all 4 pairs of UTP / STP cabling. F Connector for coaxial cabling Banana Jack Plugs (2) – two conductor wiring
Toner frequency IntelliTone™ signal: encoded digital signal
Analog SmartTone signal: 500 – 1200Hz, 4 songs
Ouptut power 5 V p-p
Auto power down Turns off automatically after 2 1/2 hours of inactivity
Probe specifications
Dimensions 8.73 in x 1.88 in x 1.26 in (22.2 cm x 4.8 cm x 3.2 cm)
Display (8) LED indicators, Sync LED indicator
Audio IntelliTone: Microprocessor controlled audio files
Analog: Detected toner signal
Control Thumbwheel switch, volume control wheel

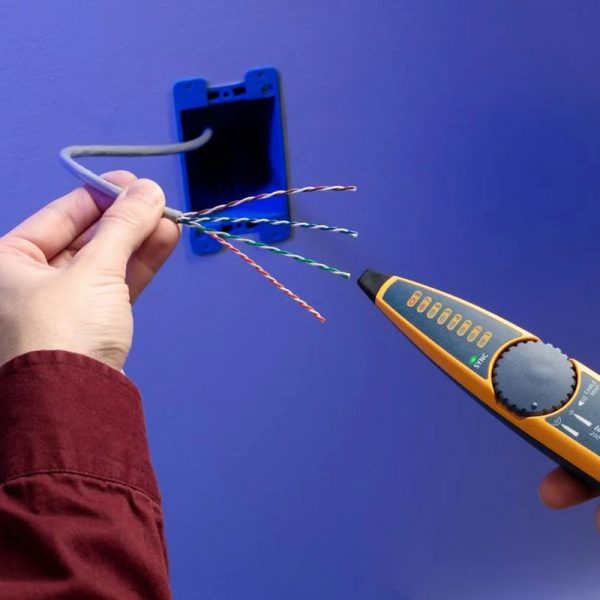

Tone detection Detects IntelliTone™ digital signal for Locate, Isolate, and Cable Map
Detects analog SmartTone signal (500-1200Hz) and other analog toners.
Toner interface Main Mod8 port for Cable Map on all 4 pairs of UTP / STP cabling.
Auto power down Turns off automatically after 1 hour of inactivity

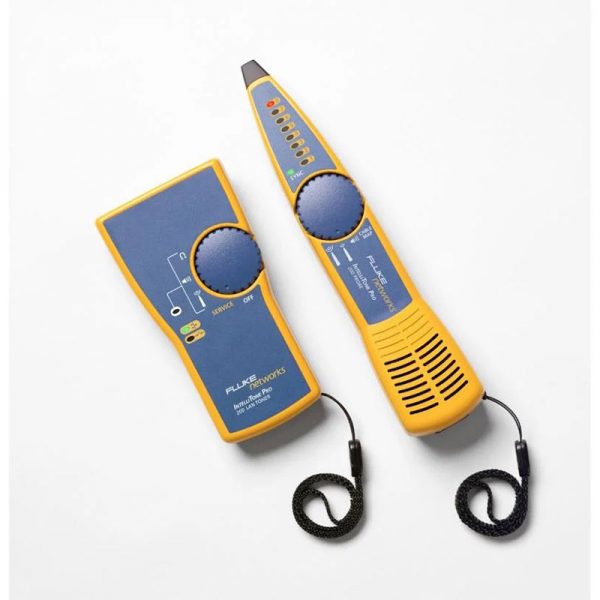

IntelliTone Pro 200 LAN Toner and Probe Kit Includes: IntelliTone 200 LAN Toner and 200 Probe, coax F connector adapter, (2) RJ11 and (2) RJ45 patch cables, test leads with alligator clips, lanyard, quick start guide, and (2) 9-volt batteries.


  • Digital Toning
  • Analog Toning
  • Cable Wiremap
  • Identify open/short
