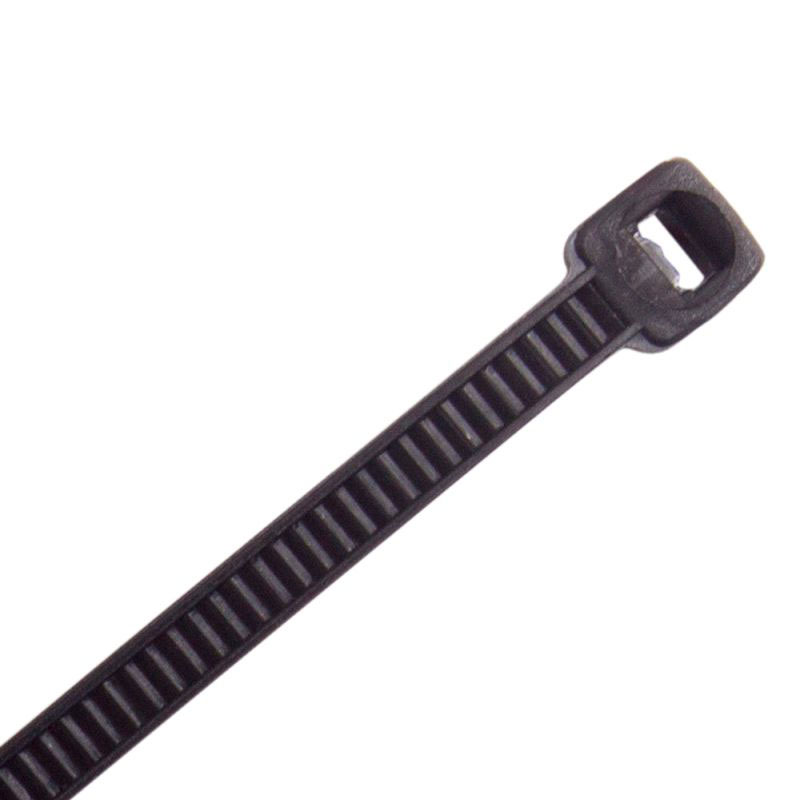

Nylon Cable Tie 200 X 4.8MM UV Black

Cable TieTools
Made from Polyamide 6,6, Halogen Free Cable Tie Head/pawl integrally moulded for added strength, bent tip design Smooth round edges, safe and will not cut insulation UV stabilised for outdoor use.

Description

Product Description
Strength, durability and adjustability are paramount in the design and development of our cable ties. CABAC nylon cable ties are made from halogen free PA66 nylon with an integrally moulded head and pawl. This, combined with intimate locking engagement between the pawl and strap teeth, means that our cable ties have high durability and strength without any metal parts.

CABAC cable ties are designed to meet applicable strength requirements without sacrificing ease of use. In fact, our cable tie design incorporates several measures to improve comfort and safety. The product has smooth, round edges that are more comfortable to work with and reduce the risk of cuts to cable insulation or hands. The tail of the tie features a bent-tip with v-shaped grooving that prevents your grip from slipping. This means less effort during pick-up, insertion and pull through.

CABAC UV stabilised black cable ties are suitable for outdoor applications.

Technical Data
Loop Tensile Strength: 22kg
Bundle Diameter: 50mm
Length: 200mm
Width: 4.8mm
Thickness: 1.3mm
Colour: Black

Conformant Standards: UL, Mil Spec, IEC, VDE, DIN.
Refer: Mil-S-23190E – testing
Smoke Emission: Low smoke/ halogen free
Material: PA66 with UV stabilisers
UV Stability: 2.5% carbon black for UV protection
Breakdown Voltage: 20 kV/mm
Moisture Content: 2.5% w.v. @ 23%/50%RH
Operating Temperature: -40 to +85 degrees Celsius
Flammability: Passed U.L. 94V-2

Tools & Accessories
Installation tools are not required, but suggested where controlled, uniform tension and cut-off are needed.



Cable Tie Type: Nylon
Cable Tie Colour: Black
Length (mm): 201
Width (mm): 4.8
Thickness (mm): 1.3
Bundle Diameter (mm): 50
